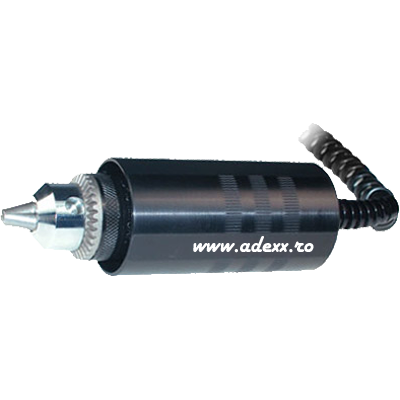

Static torque transducer R50 max. 11.5Nm
Static torque transducer R50 max 11.5Nm.
Accuracy ± 0.35% of FS.
Production calibration certificate included.
Calibration certificate according to ISO17025 on request.
-
Static torque transducer R50 max. 11.5Nm, US Mark-10.
For bi-directional measurement of static torque in different applications.
Chuck type mounting that allows the installation of various adapters.
Weight 0.6 kg.
Compatible indicators: 3I, 5I & 7I.
“Plug & Test” connection technology that allows saving the calibrations and settings in the sensor’s connector and not in the indicator, allowing 100% interchangeability.
Accuracy ± 0.35% of FS.
Calibration certificate from production included. Calibration certificate according to ISO17025 on request. We provide re-calibration.Code Capacity x Resolution Capacity x Resolution With 5I&7I indicators With 3I indicator MR50-10Z 7 x 0.005 cNm 7 x 0.005 cNm MR50-20Z 14 x 0.01 cNm 14 x 0.01 cNm MR50-50Z 35 x 0.02 cNm 35 x 0.05 cNm MR50-12
135 x 0.1 cNm 135 x 0.1 cNm MR50-50 570 x 0.5 cNm 570 x 0.5 cNm MR50-100 1150 x 0.5 cNm 1150 x 1 cNm
