Rotation transducer “Intelligent” max. 1000Nm
Rotation transducer “Intelligent” max. 1000Nm.
Torque accuracy ± 0.1 … 0.5% of FS.
Angle accuracy 0.5 degrees | 0.1 degree encoder resolution.
Calibration certificate from production included. ISO17025 calibration certificate on request.
-
Rotation transducer “Intelligent” max. 1000Nm, from N-Gineric Germany.
For bi-directional measurement of torque during tightening, for calibration of electric and pneumatic screwdrivers and in general for any dynamic test.
Angle measurement included in standard delivery.
Maximum speed 5000 rpm.
Operating temperature 0 … 40 ° C.
Ultra-compact dimensions.
USB output, as standard.
Possibility of delivery with additional outputs in the following forms:
– USB + Ethernet + RS485
– USB + 0-5V analog output
Overload protection included in the delivery for transducers up to 200cNm.Rotation transducer “Intelligent” with hexagonal or square adapters, depending on the capacity.

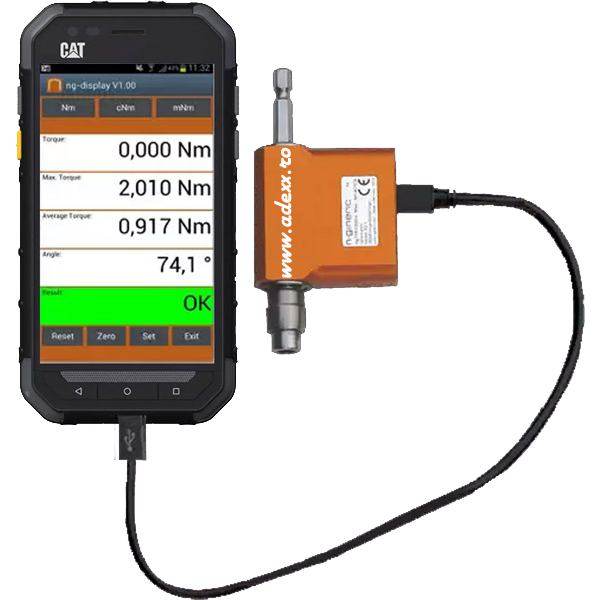

The kit in standard form contains transducer, cable and indicator resistant to shocks and liquids, for moment and angle display.
Optionally you can order n-quirer_TT software for PC, for detailed data saving and graphing moment / time or moment / angle graphs.
Precision moment ± 0.1 … 0.5% of the maximum, depending on the capacity.
Precision angle encoder 0.5 degrees | 0.1 degree encoder resolution.
Production calibration certificate included.
ISO17025 calibration certificate on request. We provide re-calibration.Cod(e) Model Nm Adaptor 01-01-00098-01 ng-TTR50-xu +/- 0.5 hex 1/4" 01-01-00099-01 g-TTR100-xu +/- 1 hex 1/4" 01-01-00100-01 ng-TTR200-xu +/- 2 hex 1/4" 01-01-00101-01 ng-TTR500-xu +/- 5 hex 1/4" 01-01-00102-01 ng-TTR1000-xu +/- 10 hex 1/4" 01-01-00103-01 ng-TTR2000-xu +/- 20 hex 1/4" 01-01-00104-01 ng-TTR5000-qu +/- 50 patrat 3/8" sq drive 1-01-00149-01 ng-TTR10000-qi
+/- 100 patrat 1/2" sq drive 01-01-00189-01 ng-TTR20000-qi +/- 200 patrat 3/4" sq drive 01-01-00151-01 ng-TTR50000-qi +/- 500 patrat 3/4" sq drive 01-01-00200-01 ng-TTR100000-qi +/-1000 patrat 1" sq drive
