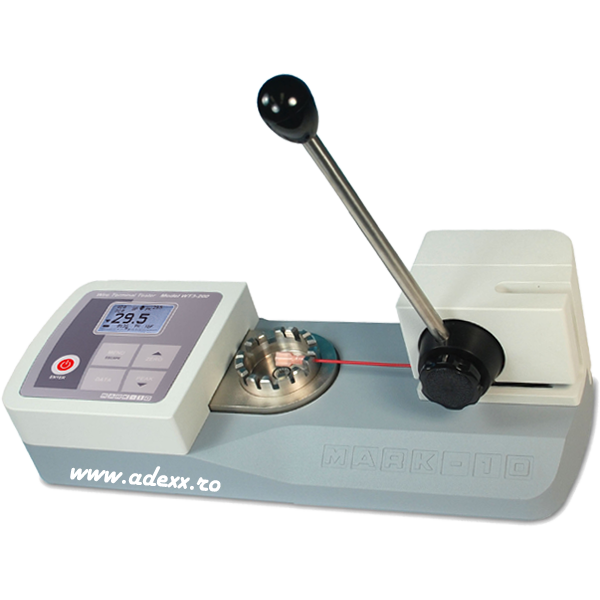

Manual wire pull tester WT3-201 max. 1000N
Manual wire pull tester WT3-201 max. 1000N.
Delivery includes MESUR Lite ™ – basic data transfer software.
Accuracy ±0.2% of the maximum.
Manufacturer calibration certificate included.
-
Manual wire pull tester WT3-201 max. 1000N, Mark-10 SUA.
Particularly intended for measuring the pull force at the terminals of the electric cables.
Ergonomic manual lever that allows easy application of the tensile force.
Large illuminated display, easy to read.
Functions for displaying the values in real time, peak, setting limits pass / not pass, etc.
Memory for 1000 values.
Automatic data output, automatic storage, reset to 0 (can be included in automated systems).
Manual wire pull tester WT3-201 | Cable diameters 0.8 – 6.3mm.
Minimum length of test cable 191 mm, without termination.
Maximum elongation 29.2mm.
Delivery includes MESUR Lite ™ – basic data transfer software.
Accuracy ± 0.2% of maximum, data frequency 7000Hz.
Manufacturer calibration certificate included. Calibration certificate according to ISO17025 on request. We provide re-calibration.
2 year warranty.Cod(e) N Rezolutie
ResolutionWT3-200E 1000 0.5
