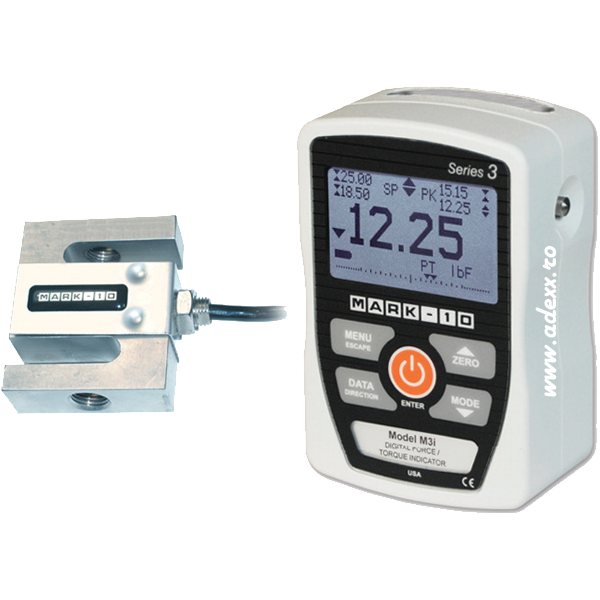

Force gauge with external transducer MR max. 50kN
Digital force gauge with external transducer MR max. 50kN.
For tension / compression.
Accuracy ±0.35% of FS.
Calibration certificate from production included. ISO17025 calibration certificate on request.
-
Force gauge with external transducer MR max. 50kN, Mark-10 USA.
For tension / compression.
They have a sample rate of 2000Hz, which produces accurate results in a wide range of test conditions.
Unique “Plug & Test” connection technology that allows to save calibrations and settings in the sensor’s connector and not in the indicator, allowing 100% interchangeability.
Allows the connection of other force or torque sensors from Mark-10.
The large backlit display displays large, legible characters, while the simple navigation menu allows quick access to force gauge options and configurable parameters.
Data can be transferred to a PC or other data collector via USB, RS-232, Mitutoyo (Digimatic), or analog outputs.
Possibility of setting value ranges for “pass / fail” tests or for activating external devices, such as an alarm, relay, or test stand.Force gauge with external transducer MR
Rechargeable batteries; 7 hours continuous operation with illuminated display and 24 hours without illuminated display.
4 units of measurement, with possibility of selection.
Delivery includes “MESUR Lite” – basic software for data transfer.
Accuracy ± 0.35% of the maximum.
Manufacturer calibration certificate included. ISO17025 calibration certificate – on request. We provide re-calibration.Cod(e) Domeniu
RangeRezolutie
ResolutionMR03-025M3IE 1 N 0.001 MR03-05M3IE 2.5 N 0.002 MR03-2M3IE 10 N 0.01 MR03-5M3IE 25 N 0.02 MR03-10M3IE 50 N 0.05 MR03-20M3IE 100 N 0.1 MR01-50M3IE 250 N 0.2 MR01-100M3IE 500 N 0.5 MR01-200M3IE 1000 N 1 MR01-500M3IE 2500 N 2 MR01-1000M3IE 5000 N 5 MR01-1500M3IE 7500N 10 MR01-2000M3IE 10000 N 10 MR01-5000M3IE 25 kN 0.02 kN MR01-10000M3IE 50 kN 0.05 kN
