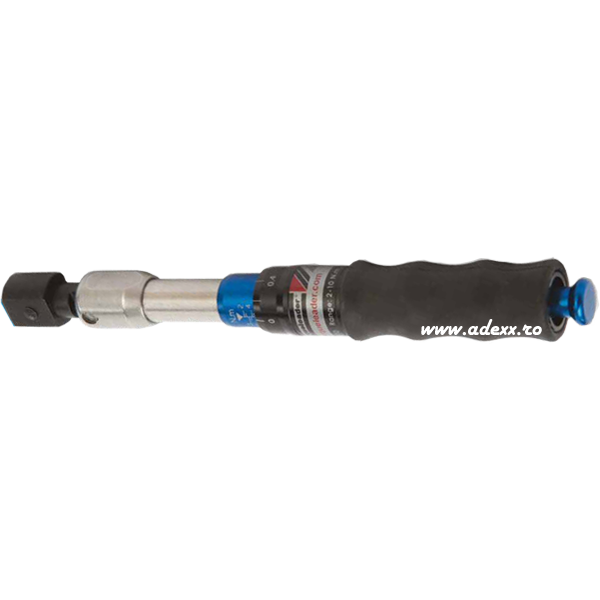

Detachable torque wrench ATB-G max. 10Nm
Detachable torque wrench ATB-G 0.5…10Nm.
Accuracy ± 6% acc. ISO6789.
Adapter 9×12.
-
Detachable torque wrench ATB-G max 10Nm, Gedore Torque, 9×12 adapter.
The ATB models work based on articulated or “breaking” principle, which means that when torque is reached, the handle moves an angle of 20 degrees, clearly indicating the torque achieving and in the same time reduces the risk of over tightening.
ATB torque wrenches have micrometer adjustment scale, so that the user can quickly change set set.
For use on product lines or precision assembly applications.
Trigger only in one direction; Can be used both ways by switching the ratchet or the accessories.
Detachable torque wrench ATB-G | Approved for use in ESD sensitive environments.
Accuracy ± 6% acc. ISO6789.
Calibration certificate included.
2 year warranty.
We provide recalibration, service and spare parts.
24 hours delivery for the items being on stock.Code Model ISO Division Imperial Division Adaptor
mm kg Usually in stock 050527 ATB 2.5 G 50-250 cNm 1.25 cNm - - 9x12 mm 192 0.27 ✔ 050532 ATB 2.5 G - - 4.5-22.5 lbf.in 0.1 lbf.in 9x12 mm 192 0.27 050507 ATB 5 G 1-5 Nm 0.025 Nm - - 9x12 mm 230 0.29 ✔ 050512 ATB 5 G - - 10-45 lbf.in 0.25 lbf.in 9x12 mm 230 0.29 050557 ATB 10 G 2-10 Nm 0.05 Nm - - 9x12 mm 230 0.30 ✔ 050562 ATB 10 G - - 20-90 lbf.in 0.5 lbf.in 9x12 mm 230 0.30
