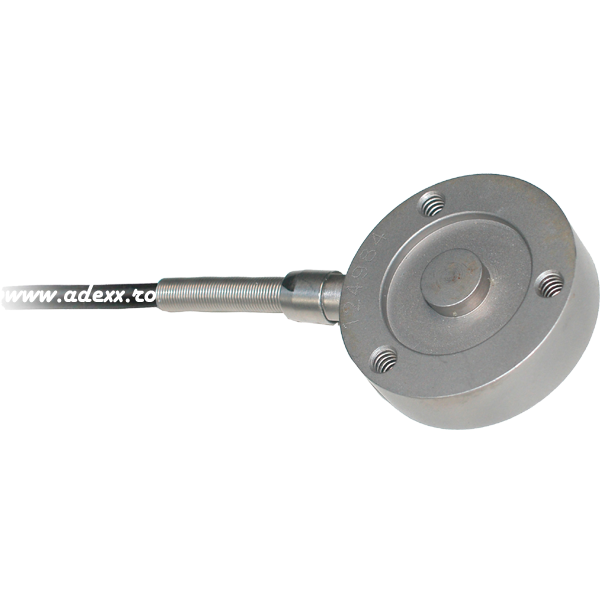

Compression transducer MR02 max. 50kN
Compression transducer MR02 max. 50kN.
Accuracy ± 0.5% of FS + indicator accuracy.
Calibration certificate from the manufacturer included.
ISO17025 calibration certificate on request.
-
Compression transducer MR02 max 50kN, Mark-10 USA.
Robust construction, “button” shape.
Possibility to use in applications with limited space.
Weight 0.2 kg.
“Plug & Test” connection technology that allows saving the calibrations and settings in the sensor connector and not in the indicator, allowing 100% interchangeability.
Accuracy ± 0.5% of FS + indicator accuracy. Compatible with all Mark-10 indicators: 3I, 5I, 7I.
Calibration certificate from the manufacturer included. ISO17025 calibration certificate on request. We provide re-calibration.Cod N Rezolutie Rezolutie Cu indicatoare 5I & 7I Cu indicator 3I MR02-100 500 0.2 0.5 MR02-200 1000 0.5 1 MR02-500 2500 1 2 MR02-1000 5000 2 5 MR02-2000 10.000 5 10 MR02-5000 25.000 10 0.02 kN MR02-10000 50.000 25 0.05 kN
